Distinguishing Between 2 Pole DC Circuit Breakers and Single-Pole DC Circuit Breakers: Design and Application

2024-06-13

In the realm of electrical protection, circuit breakers play a crucial role in safeguarding systems from overcurrent and short circuits. Among the various types, 2 Pole DC Circuit Breakers and single-pole DC circuit breakers serve distinct purposes and are designed for different applications. This blog will delve into the key differences between these two types of circuit breakers, focusing on their design and application in electrical systems.


Understanding Single-Pole DC Circuit Breakers


Design Features

A single-pole DC circuit breaker is designed to protect one conductor within a circuit. Here are some of its key design features:

- Single-Pole Protection: It interrupts the current flow in one conductor only.

- Compact Size: Typically smaller and more compact compared to multi-pole breakers.

- Simple Construction: Consists of basic components such as a trip mechanism, arc extinguisher, and contacts.


Applications

Single-pole DC circuit breakers are used in applications where only one conductor needs protection. Common applications include:

- Low-Voltage DC Circuits: Protecting individual DC circuits in low-voltage applications, such as solar panel strings and battery systems.

- Simple Electrical Systems: Used in straightforward electrical systems where each conductor can be individually protected.

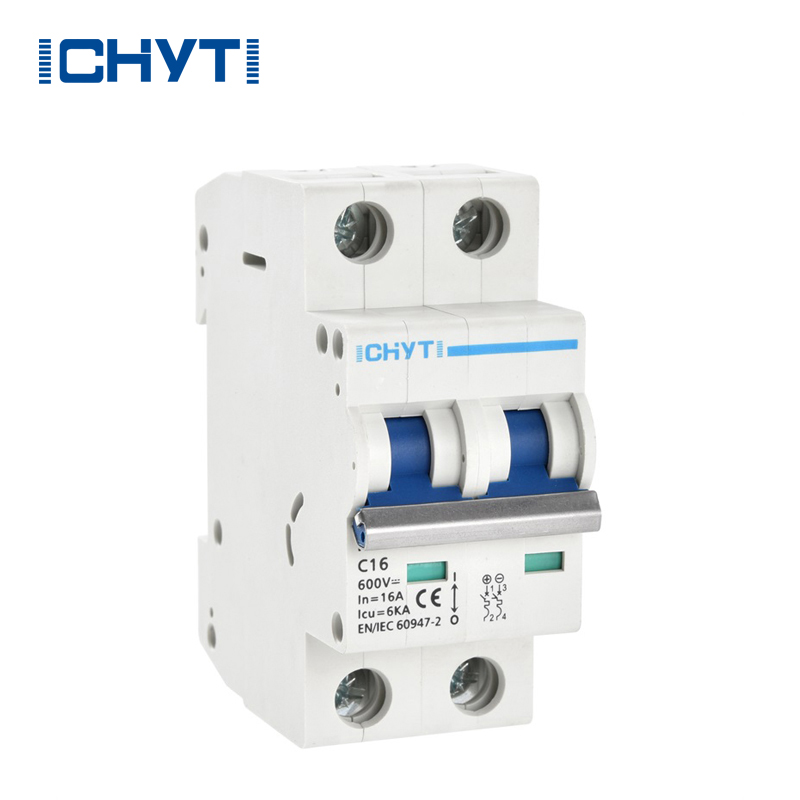

Understanding 2 Pole DC Circuit Breakers

Design Features

A 2 Pole DC circuit breaker is designed to protect two conductors simultaneously. Key design features include:

- Dual-Pole Protection: Interrupts the current flow in both conductors simultaneously, ensuring comprehensive circuit isolation.

- Larger Size: Generally larger due to the need to accommodate two sets of contacts and trip mechanisms.

- Enhanced Safety Mechanisms: Includes features to manage the simultaneous interruption of both poles, reducing the risk of electrical hazards.


Applications

2 Pole DC circuit breakers are used in applications where it is crucial to protect and isolate two conductors. Common applications include:

- High-Voltage DC Systems: Used in high-voltage applications such as solar inverters, where both positive and negative conductors need protection.

- Complex Electrical Systems: Suitable for more complex electrical systems where dual-pole protection enhances safety and reliability.


Key Differences in Design

1. Number of Protected Conductors

- Single-Pole DC Circuit Breakers: Protect one conductor, making them suitable for simple circuits.

- 2 Pole DC Circuit Breakers: Protect two conductors simultaneously, ensuring comprehensive protection and isolation.


2. Size and Complexity

- Single-Pole DC Circuit Breakers: Typically smaller and simpler in design, easier to install in limited spaces.

- 2 Pole DC Circuit Breakers: Larger and more complex due to the need to handle two conductors, requiring more space and potentially more intricate installation.


3. Trip Mechanism

- Single-Pole DC Circuit Breakers: Feature a single trip mechanism to interrupt the current flow in one conductor.

- 2 Pole DC Circuit Breakers: Incorporate dual trip mechanisms that work in tandem to interrupt both conductors, enhancing the safety of the circuit.


Key Differences in Application

1. Safety and Isolation

- Single-Pole DC Circuit Breakers: Provide basic protection for individual conductors but do not offer comprehensive circuit isolation.

- 2 Pole DC Circuit Breakers: Offer enhanced safety by isolating both conductors, reducing the risk of electrical shocks and ensuring complete circuit disconnection.


2. Application Scope

- Single-Pole DC Circuit Breakers: Best suited for simple, low-voltage applications where individual conductor protection is sufficient.

- 2 Pole DC Circuit Breakers: Ideal for high-voltage and complex systems where dual-pole protection and complete isolation are critical for safety and reliability.


3. Installation Complexity

- Single-Pole DC Circuit Breakers: Easier to install due to their compact size and simpler design, making them suitable for straightforward applications.

- 2 Pole DC Circuit Breakers: Require more space and careful installation due to their larger size and dual-pole design, suitable for complex and high-voltage systems.


Practical Examples

Single-Pole DC Circuit Breaker Use Cases

- Solar Panel Strings: Protecting individual strings of solar panels in a photovoltaic array.

- Battery Systems: Protecting individual battery circuits in low-voltage battery storage systems.

2 Pole DC Circuit Breaker Use Cases

- Solar Inverters: Protecting both the positive and negative conductors in solar inverter systems, ensuring complete isolation during faults.

- Industrial DC Systems: Protecting dual-conductor circuits in industrial applications, such as DC motor drives and control systems.


Conclusion

Understanding the differences between 2 Pole DC Circuit Breakers and single-pole DC circuit breakers is essential for selecting the right protective device for your electrical system. While single-pole breakers are suitable for simple, low-voltage applications, 2 Pole DC Circuit Breakers provide enhanced safety and reliability for high-voltage and complex systems. By choosing the appropriate circuit breaker, you can ensure the safety, efficiency, and longevity of your electrical installations.
