In-Depth Guide to the Components of a Switching Power Supply and Their Functions

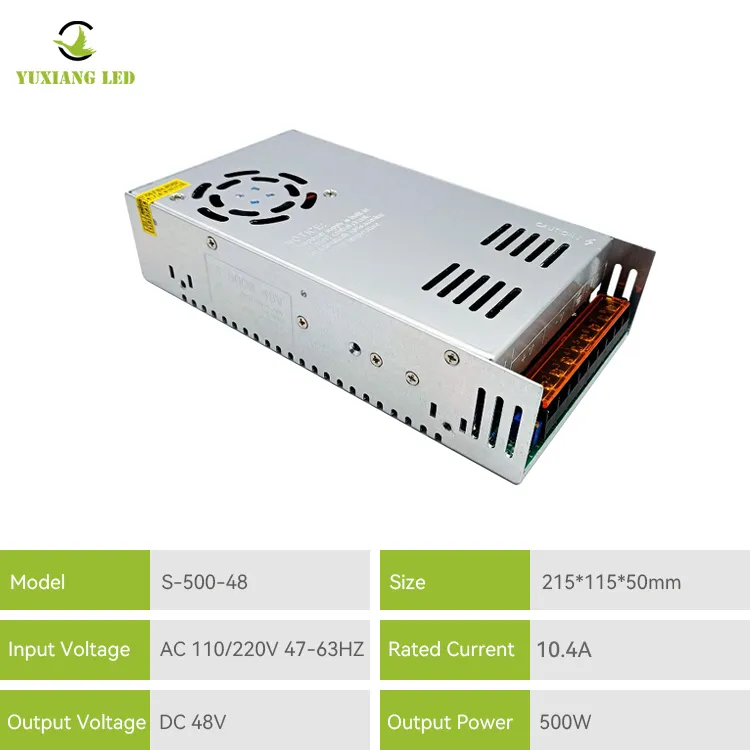

Switching power supplies are essential for efficient power conversion, used in countless electronic applications. While the technology behind these devices is complex, each component plays a specific role in ensuring safe and steady power output. Here’s an in-depth look at each of the major components found in a switching power supply and how they work together.

1. AC-DC Rectifier and Input Filter

The power supply’s journey begins at the rectifier and input filter. Here’s how they work:

- AC-DC Rectifier: Most power supplies operate on DC power, but electrical grids supply AC power. The rectifier converts this AC voltage to DC, allowing the rest of the circuitry to operate properly. Often, bridge rectifiers are used for this purpose, consisting of four diodes that rectify both the positive and negative AC cycles.

- Input Filter: After rectification, the current is still “bumpy” with some ripple voltage. The input filter smooths out these fluctuations to provide a steady DC signal. Capacitors are commonly used in this stage to absorb and reduce noise and ripple.

2. Power Switch (Transistor)

The power switch is typically a MOSFET or IGBT transistor that performs high-speed switching. This component operates as the “heart” of the power supply, quickly turning on and off to regulate how much current reaches the output. By switching at high frequencies (often in the range of tens or hundreds of kilohertz), the transistor ensures that power is efficiently delivered without the need for bulky components. The rapid switching process allows the transformer to work at a much smaller size, which is one of the main reasons switching power supplies are compact.

3. Transformer

In switching power supplies, the transformer adjusts the voltage level to match the output requirements. Unlike transformers in linear power supplies, which operate at low frequencies, switching power supply transformers operate at high frequencies, allowing for a smaller, lighter design. The transformer’s design also helps isolate the output from the input, which is crucial for safety.

4. Output Rectifier and Filter

The high-frequency AC current from the transformer needs to be converted back to a stable DC current for most applications. This step involves two parts:

- Output Rectifier: The rectifier here converts the AC from the transformer into DC. Schottky diodes are often used due to their fast switching capabilities and low voltage drop.

- Output Filter: After rectification, the output filter—usually a combination of capacitors and inductors—smooths out any remaining ripple. This provides a clean, stable DC output that’s safe for electronic components.

5. Control Circuit

The control circuit is what makes the power supply “smart.” It monitors the output voltage and adjusts the switching frequency or duty cycle to maintain a stable output. If the output voltage drops due to an increased load, the control circuit can respond by increasing the power transfer to the load. This closed-loop feedback ensures that the output remains consistent even if the input voltage fluctuates or the load changes.

6. Feedback Circuit

Finally, the feedback circuit provides data to the control circuit. By continuously monitoring the output voltage, the feedback circuit enables quick and precise adjustments. Optocouplers are often used in feedback circuits to isolate the high-voltage output from the low-voltage control section, ensuring safety and accuracy in feedback.

The Advantages of Switching Power Supplies

Switching power supplies are popular because they’re efficient, compact, and adaptable to various voltage needs. They reduce energy waste, can handle varying input voltages, and offer precise power control. Each component contributes to a system that’s optimized for efficiency and reliability, making switching power supplies essential in consumer electronics, medical devices, and industrial equipment alike.

Understanding the components of a switching power supply provides insight into how this technology works and why it’s become a preferred choice in power management for modern electronics.
