Navigating Challenges: Common Limitations of Manual Video Measuring Machines

2024-03-20

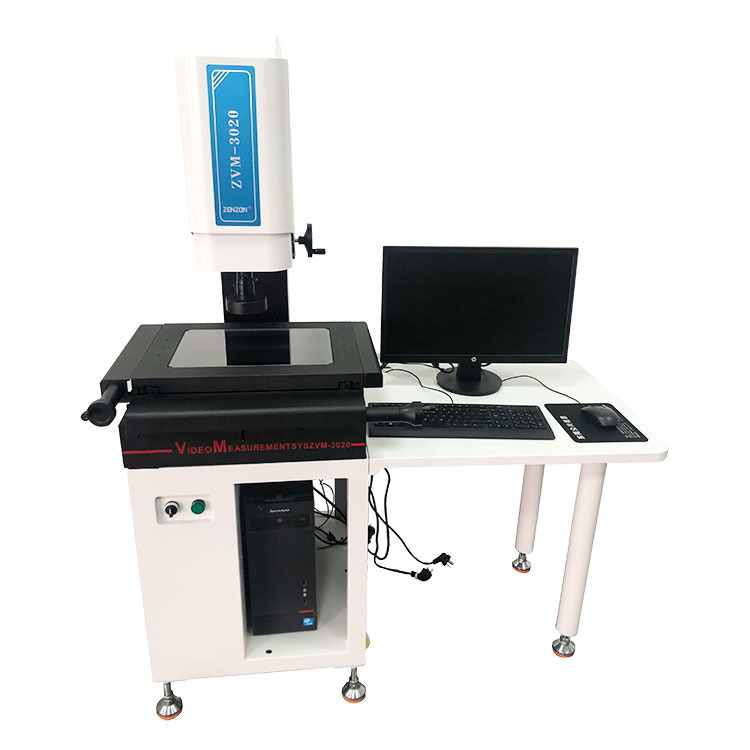

In the pursuit of precision measurement, manual video measuring machines (VMMs) have emerged as invaluable tools across various industries. These sophisticated devices offer advanced capabilities for dimensional analysis, quality control, and product development. However, like any technology, manual VMMs are not without their challenges and limitations. Let's explore some of the common obstacles that users may encounter when utilizing manual video measuring machines and how to navigate them effectively.

1. Limited Measurement Speed: One of the primary challenges associated with manual video measuring machines is their relatively slower measurement speed compared to automated systems such as coordinate measuring machines (CMMs). Manual VMMs require operators to manually position the object being measured on the stage, capture images, and analyze dimensional data, which can be time-consuming, especially for complex measurements or high-volume inspection tasks.

  Mitigation: To overcome this limitation, manufacturers can optimize workflow processes, implement efficient measurement strategies, and provide comprehensive training to operators to minimize measurement turnaround times. Additionally, considering automated or semi-automated features in manual VMMs may help streamline measurement processes and improve efficiency.

2. Operator Skill Dependency: Another challenge associated with manual video measuring machines is their reliance on operator expertise and skill. Obtaining accurate and reliable measurement results requires skilled operators who are proficient in using the machine, interpreting measurement data, and troubleshooting potential issues.

  Mitigation: Investing in comprehensive training programs for operators is essential to ensure proficiency in operating manual VMMs effectively. Providing ongoing support, resources, and access to training materials can empower operators to enhance their skills and optimize measurement processes. Additionally, implementing standardized operating procedures and quality assurance protocols can help mitigate the risk of human error and ensure consistent measurement accuracy.

3. Limited Measurement Range: Manual video measuring machines may have limitations in terms of their measurement range, particularly when measuring large or oversized components. The physical constraints of the machine's stage and imaging system may restrict the size of objects that can be accommodated, posing challenges for certain applications.

  Mitigation: When selecting a manual VMM, it's essential to consider the measurement range and capacity of the machine and ensure that it aligns with the size and dimensions of the objects being measured. For larger components, alternative measurement methods or specialized equipment may be necessary to accommodate the measurement requirements effectively.

4. Surface Texture and Reflectivity: Surface texture and reflectivity can pose challenges for manual video measuring machines, particularly when measuring highly reflective or textured surfaces. Glare, shadows, and specular reflections may obscure surface features, leading to inaccuracies in measurement data.

  Mitigation: Implementing appropriate lighting techniques, such as diffused or angled lighting, can help minimize glare and reflections and enhance image quality. Additionally, using specialized imaging filters or coatings may improve contrast and visibility of surface features, enabling more accurate measurements. Conducting thorough surface preparation, such as applying anti-glare coatings or using matte finishes, can also mitigate the impact of surface texture on measurement accuracy.

5. Software Limitations: The software interface of manual video measuring machines plays a crucial role in data analysis, visualization, and reporting. However, some machines may have limitations in terms of software functionality, customization options, or compatibility with external systems.

  Mitigation: When selecting a manual VMM, it's essential to assess the capabilities of the software interface and ensure that it meets the specific requirements of your application. Look for machines with intuitive and user-friendly software, advanced measurement tools, and customization options to optimize data analysis and reporting. Additionally, consider compatibility with industry-standard file formats and integration with other software systems within your organization to facilitate seamless data sharing and collaboration.

In conclusion, while manual video measuring machines offer advanced capabilities for precision measurement, they are not without their challenges and limitations. By understanding and effectively navigating these obstacles, users can optimize the performance and reliability of manual VMMs and ensure accurate dimensional analysis across various industries and applications.
