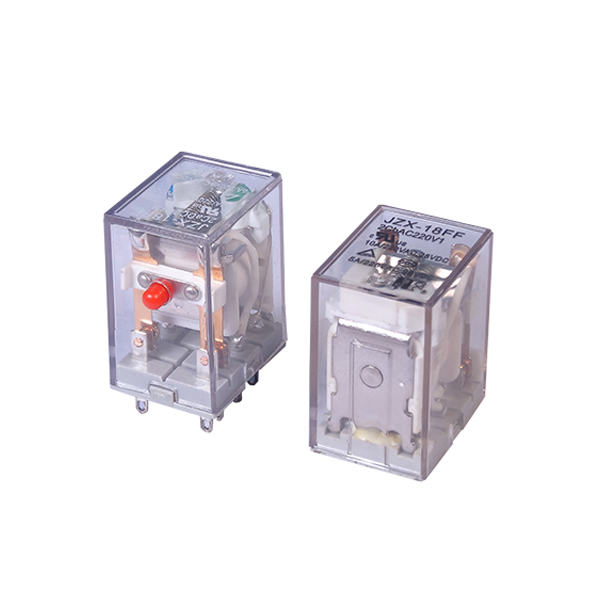

Understanding Contact Ratings in General Purpose Relays for Heavy Power Switching

2024-04-09

Introduction:

Contact ratings play a pivotal role in determining the suitability of General Purpose Relays for Heavy Power Switching for different loads. These ratings provide crucial information about the relay's ability to safely handle various electrical currents and voltages. In this blog, we'll delve into how contact ratings impact the relay's performance and suitability for different loads, highlighting their significance in ensuring reliable operation in diverse applications.

Understanding Contact Ratings:

Contact ratings refer to the maximum current and voltage that a relay's contacts can safely handle without experiencing damage or failure. These ratings are typically specified by manufacturers and are crucial considerations when selecting relays for specific applications. The two primary contact ratings to consider are:

1. Current Rating:

The current rating indicates the maximum continuous current that the relay's contacts can carry without overheating or sustaining damage. It is typically measured in amperes (A) and varies depending on factors such as contact material, size, and construction. Exceeding the rated current can cause contact welding, arcing, or degradation, leading to unreliable operation and potential safety hazards.

2. Voltage Rating:

The voltage rating specifies the maximum voltage that the relay's contacts can safely withstand when open or closed. It is typically expressed in volts (V) and reflects the insulation capabilities of the contacts to prevent arcing or breakdown under high voltage conditions. Exceeding the rated voltage can cause insulation failure, resulting in electrical arcing and potentially damaging the relay and surrounding components.

Impact of Contact Ratings on Load Suitability:

The contact rating of a General Purpose Relay for Heavy Power Switching directly influences its suitability for different loads. Here's how:

1. High-Current Loads:

For applications involving high-current loads, such as industrial machinery or power distribution systems, relays with higher current ratings are essential. Choosing a relay with an adequate current rating ensures that the contacts can handle the required current without overheating or experiencing excessive voltage drop, thereby maintaining reliable operation and preventing premature failure.

2. High-Voltage Loads:

Similarly, applications with high-voltage loads, such as power distribution panels or electric vehicle charging stations, require relays with appropriate voltage ratings. Selecting a relay with a voltage rating that exceeds the maximum voltage encountered in the circuit ensures safety and reliability by preventing insulation breakdown and arcing.

3. Inrush Currents:

Some loads, such as motors or transformers, may produce inrush currents during startup or operation. Relays with higher current ratings or special designs capable of handling inrush currents are necessary to prevent contact welding or damage caused by the sudden surge of current.

Conclusion:

In conclusion, contact ratings are crucial factors that determine the suitability of General Purpose Relays for Heavy Power Switching for different loads. By understanding the impact of current and voltage ratings on relay performance, engineers and technicians can make informed decisions when selecting relays for specific applications. Choosing relays with appropriate contact ratings ensures reliable operation, prolongs relay lifespan, and enhances overall safety in electrical systems handling heavy power loads.
