Understanding Power Output Ranges and Wavelengths for Multimode Fiber Coupled Laser Diodes

2024-05-14

In the realm of optics and laser technology, multimode fiber coupled laser diodes play a pivotal role, offering a versatile solution for various applications spanning telecommunications, data transmission, medical devices, industrial processes, and beyond. These laser diodes are prized for their efficiency, compactness, and the ability to deliver precise light energy through multimode optical fibers. However, comprehending the power output ranges and wavelengths available for these devices is crucial for selecting the right laser diode for specific applications.

Power Output Ranges:

Multimode fiber coupled laser diodes come in a wide range of power outputs, tailored to meet the diverse requirements of different applications. The power output of these laser diodes typically ranges from a few milliwatts to several watts. Here's a breakdown of the typical power output ranges:

1. Low Power (mW Range): Laser diodes with low power outputs, ranging from a few milliwatts up to around 100 milliwatts, find application in tasks such as optical sensing, barcode scanning, and alignment systems. These low-power laser diodes are characterized by their energy efficiency and suitability for precision tasks where minimal heat generation is desired.

2. Medium Power (Watt Range): Moving up the power spectrum, laser diodes with medium power outputs, typically ranging from around 100 milliwatts to a few watts, are employed in various applications such as laser printing, laser engraving, and material processing. These laser diodes strike a balance between power output and compactness, making them suitable for tasks that require moderate levels of energy delivery.

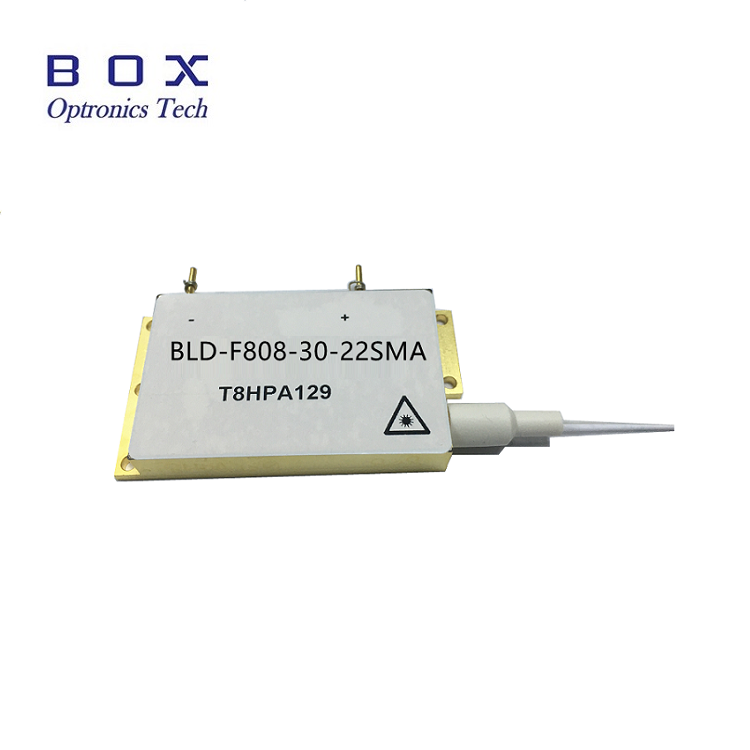

3. High Power (Multiple Watts): High-power multimode fiber coupled laser diodes, with outputs ranging from several watts to tens of watts or more, are utilized in industrial cutting, welding, and laser pumping applications. These laser diodes offer significant energy output, enabling rapid material processing and efficient energy transfer in industrial settings.

Wavelengths:

Wavelength selection is another critical aspect when choosing multimode fiber coupled laser diodes, as it determines the interaction of the laser light with the material being processed or transmitted through the optical fiber. Different wavelengths offer distinct advantages depending on the application requirements. Here are some common wavelength ranges for multimode fiber coupled laser diodes:

1. Visible Spectrum (400 nm - 700 nm): Laser diodes operating in the visible spectrum are frequently used in applications such as laser displays, biomedical imaging, and microscopy. The visible wavelengths offer good visibility and are well-suited for applications where precise positioning or targeting is necessary.

2. Near-Infrared (NIR) Spectrum (700 nm - 1100 nm): NIR laser diodes find extensive use in telecommunications, fiber optic sensing, and spectroscopy. The NIR spectrum offers good transmission through optical fibers and is ideal for long-distance communication and sensing applications.

3. Infrared (IR) Spectrum (1100 nm and beyond): IR laser diodes are employed in tasks such as laser surgery, material processing, and industrial sensing. The longer wavelengths in the IR spectrum penetrate deeper into materials, making them suitable for applications requiring increased depth of penetration or reduced scattering effects.

Conclusion:

Multimode fiber coupled laser diodes offer a diverse range of power outputs and wavelengths, catering to a wide array of applications across various industries. Understanding the typical power output ranges and wavelengths available for these laser diodes is essential for selecting the most suitable device for specific application requirements. Whether it's precision sensing, industrial processing, or telecommunications, the versatility and efficiency of multimode fiber coupled laser diodes continue to drive innovation across multiple fields, shaping the future of laser technology.
