What is a Photovoltaic AC Combiner Box and Why Is It Essential for Solar Energy Systems

As solar energy continues to grow in popularity, the components that make up a solar power system are becoming more critical in maximizing efficiency and safety. One such essential component is the Photovoltaic (PV) AC Combiner Box. In this blog, we’ll break down what a PV AC combiner box is, its role in a solar power system, and why it is essential for both residential and commercial solar setups.

What is a Photovoltaic AC Combiner Box?

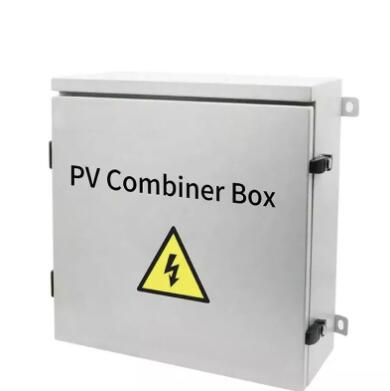

A Photovoltaic AC Combiner Box is an electrical enclosure designed to combine multiple AC outputs from inverters into a single feed. It plays a crucial role in streamlining and protecting the AC power generated by a solar energy system before it is sent to the electrical grid or consumed on-site. These boxes are typically used in larger solar energy systems, where several inverters or solar arrays are in operation.

Key Functions of a PV AC Combiner Box

1. Combining AC Outputs: The primary function of the AC combiner box is to merge the AC outputs from multiple inverters into a single output. This makes it easier to connect the system to the main electrical panel or the grid.

2. Protection: AC combiner boxes are equipped with overcurrent protection devices such as circuit breakers or fuses. This protection helps prevent electrical faults, overloads, or short circuits that could damage the system or pose a safety risk.

3. Monitoring: Modern PV AC combiner boxes often come with built-in monitoring equipment that allows users to keep track of system performance. Monitoring data can include voltage, current, and other critical metrics to ensure the system is running efficiently.

4. Surge Protection: Some combiner boxes are equipped with surge protection devices (SPDs) to safeguard the system from voltage spikes caused by lightning strikes or grid issues.

Why is the PV AC Combiner Box Essential?

The PV AC combiner box plays an indispensable role in enhancing the functionality, safety, and reliability of a solar power system. Below are the key reasons why this component is vital:

1. Simplified System Design: By merging multiple AC outputs into a single line, the combiner box reduces the complexity of wiring and minimizes the number of connections to the main panel or grid. This results in a cleaner, more organized solar installation.

2. Enhanced Safety: The built-in fuses, circuit breakers, and surge protection devices provide multiple layers of protection. In the event of an electrical fault, the combiner box can prevent significant damage to the system or potential fire hazards.

3. Improved Monitoring and Maintenance: A combiner box that offers monitoring capabilities provides real-time data about the performance of your solar energy system. With this data, you can detect any issues early and ensure timely maintenance, preventing long-term efficiency losses.

4. Cost Efficiency: Instead of running multiple cables from inverters to the main electrical panel, the combiner box allows a single, streamlined connection. This reduces installation costs, labor, and potential points of failure.

Components of a Photovoltaic AC Combiner Box

- AC Breakers: These are essential in disconnecting individual inverters from the system in case of overload or maintenance.

- Surge Protection Devices (SPD): SPDs prevent damage from sudden voltage surges, which can occur due to weather events like lightning or issues with the grid.

- Terminal Blocks: These are used to connect and organize the wiring from multiple inverters in an orderly manner.

- Monitoring Equipment: Advanced combiner boxes are equipped with sensors to monitor system performance and output.

Where are PV AC Combiner Boxes Used?

- Residential Solar Systems: In homes with multiple solar arrays or inverters, combiner boxes simplify the system’s design and improve safety.

- Commercial Solar Installations: For larger commercial setups with multiple inverters, the AC combiner box is vital for organizing output and providing protection.

- Utility-Scale Solar Farms: These large-scale installations require robust combiner boxes to manage power from numerous inverters efficiently.

Conclusion

The Photovoltaic AC Combiner Box is a vital component in modern solar power systems. It enhances efficiency, improves safety, and simplifies the wiring of multiple inverters. Whether you’re setting up a residential, commercial, or utility-scale solar installation, having a reliable combiner box ensures that your system runs smoothly and safely. By understanding its function and importance, you can make informed decisions to optimize your solar energy setup.
